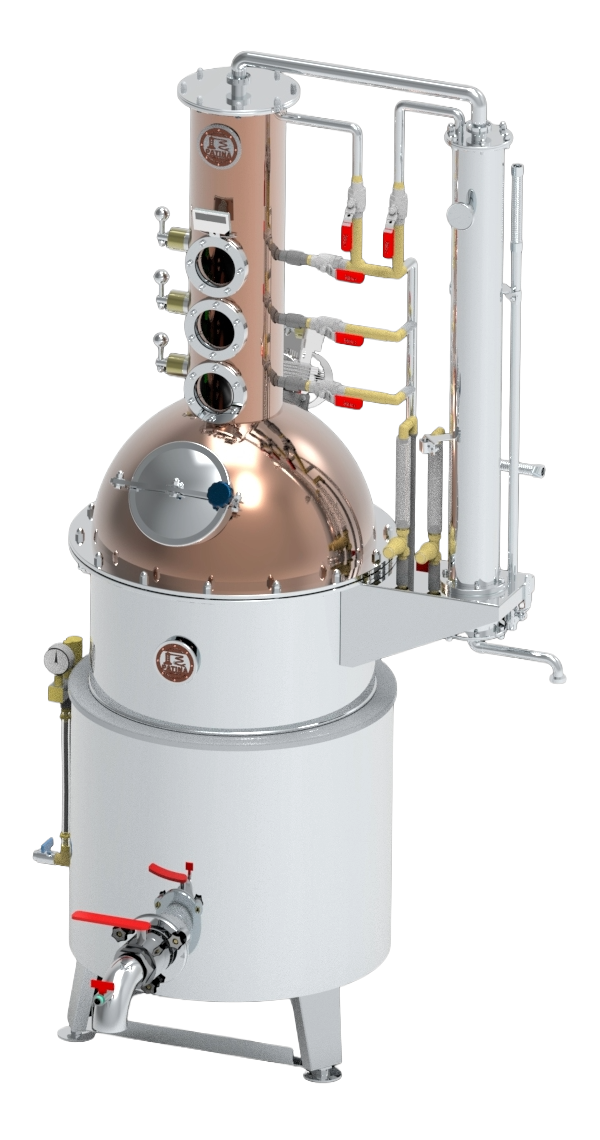

Totem 200L column still (new model!)

TECHNICAL DETAILS

Capacity 200/250 Litre
Net capacity min. 100 liters / max. 250 liters
Dimensions Height: 2335 mm (for the 250-litre version: +300 mm), Width: 1217 mm, Length: 1276 mm
Weight 150 kg
Material Stainless steel 2 mm, Copper 2 mm
Heating method Electric heating 15 kW - 30 kW
Average distillation time 2-3 hours
Average ABV 75-90 %
Suitable for the production of Gin, Whisky, Brandy, Vodka

THE MACHINE IS ALSO AVAILABLE WITH A 250 L NET CAPACITY FOR AN ADDITIONAL FEE.

Electrical requirements

Power Calculated current / phase Nearest higher-rated circuit breaker
15 kW 21,7 A 25 A
20 kW 28,9 A 32 A

The TOTEM 200L is fully compatible with the world’s major electrical standards.

Features

  • European standard (EU): 220–240V / 50Hz (Type C, E, F)
  • North American standard (USA/Canada): 110–120V / 60Hz (Type A, B)
  • United Kingdom standard (UK): 230V / 50Hz (Type G)
  • Japanese standard: 100V / 50–60Hz (Type A, B)
  • Australian standard: 230V / 50Hz (Type I)
  • Chinese standard: 220V / 50Hz (Type A, C, I)
  • Double wall cauldron
  • Plate control system
  • Column back washing
  • Copper catalyst
  • Parrot beak
  • Stirring motor
  • Electrical switch box

Dimensions

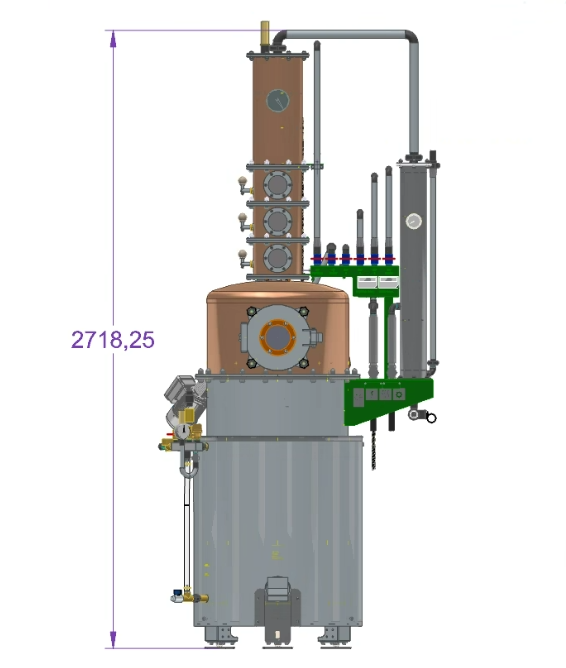

The dimensions of the TOTEM 200L are shown in the image below. The machine has an overall height of 272 cm. We normally recommend a minimum clearance of 5 cm between the top of the machine and the ceiling.

The unit requires approximately 1 m² of floor space, plus additional clearance around the machine in accordance with local fire safety regulations.

Welded stainless steel legs made from robust closed profiles and solid round steel ensure the stability of the TOTEM 200L distillery.

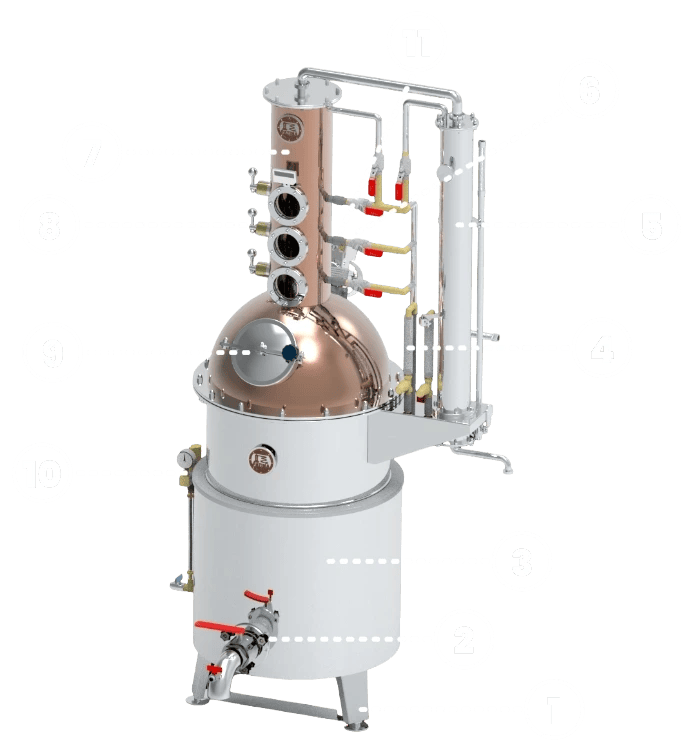

Machine components

  1. Three heavy-duty adjustable support legs
  2. 3" drain valve
  3. Insulated boiler housing
  4. Rotameters for water regulation
  5. shell-and-tube condenser
  6. CIP system with valves and spray ball
  7. Deflegmator
  8. Sieve trays with flow and level control
  9. Loading door
  10. Double-walled boiler with water jacket, safety fittings and level indic
  11. Stirring motor

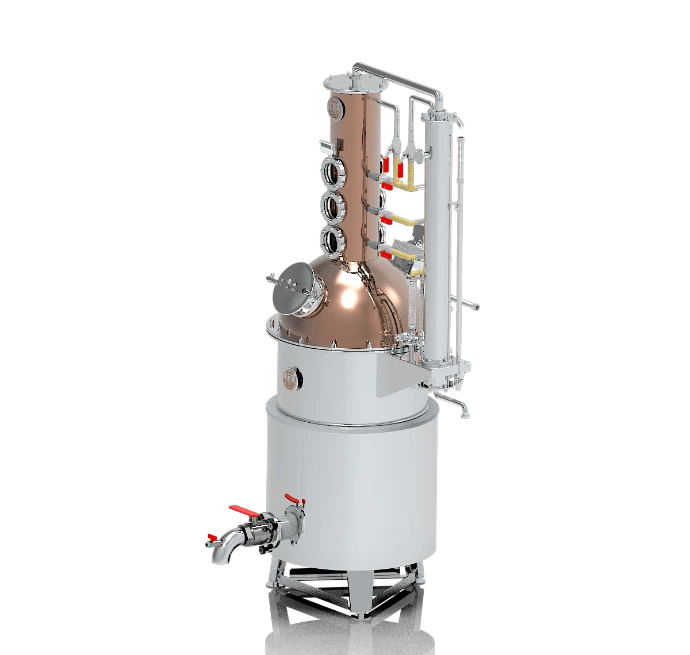

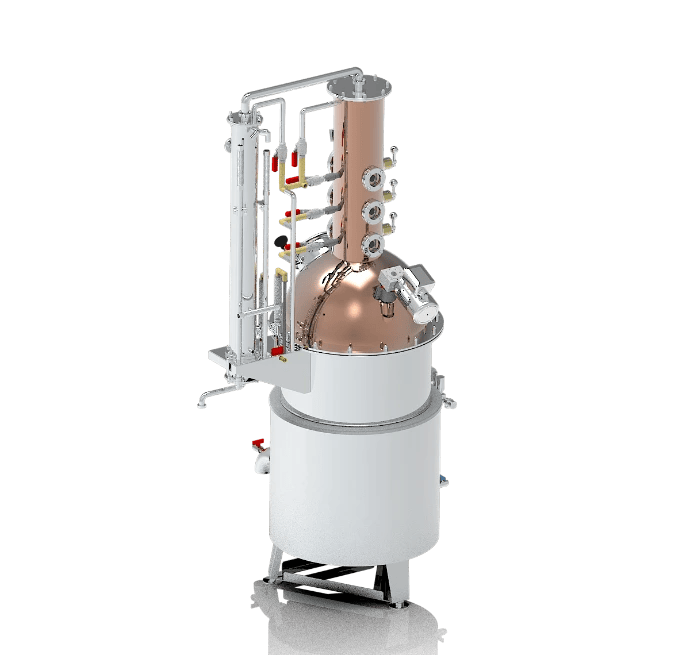

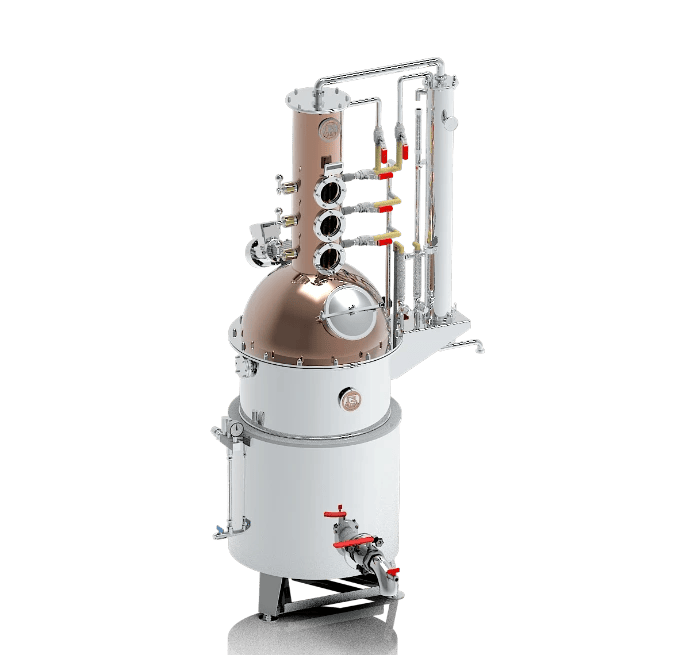

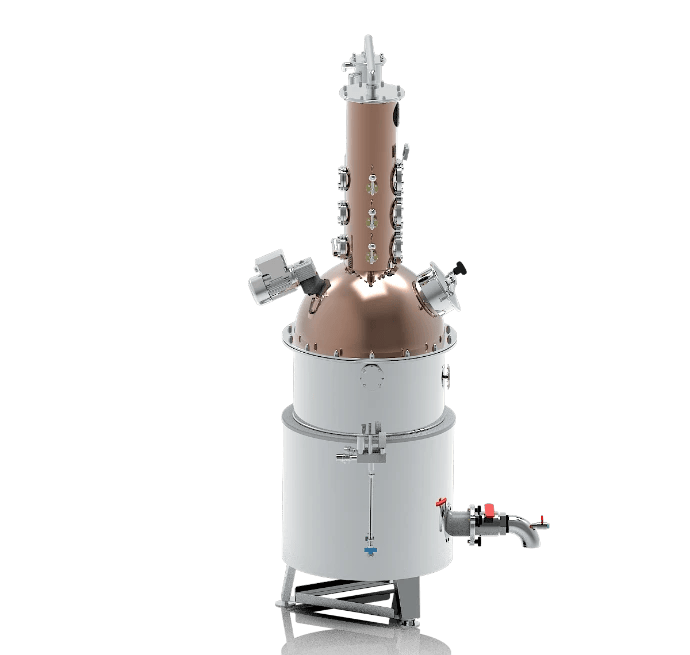

Gallery

To get a quote and more information about the Totem 200 column still, please fill out the form and our colleagues will get back to you with the details as soon as possible.
